Hive

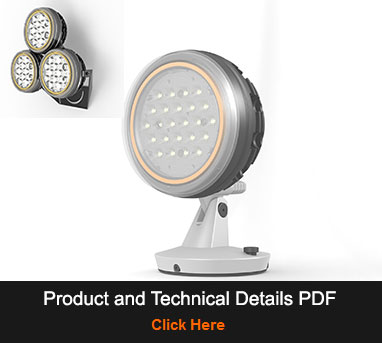

Hive is a compact led wall washer, innovative and stylish designed luminaire, used as a powerful washer, which generates a uniform light output in a compact unit. The Hive Led wall washer can be installed in versatile variations: wall, ceiling or above the ground. Hive incorporates an Active Thermal Protection system (ATP) to ensure color and light output are maintained over time
Features
Innovative design - With an aluminum body, perfect proportions and sleek design, it fits elegantly in every environment.
Weather Proof - The fixture is Outdoor (IP67) or Indoor (IP40) rated and vandal proof.
Adjustable - A100� tilt for all mounting accessories.
Low Voltage Operation
Applications
Commercial use
Retail or department stores
Museums
Wall grazing/washing
Building facade illumination
Technical Summary
| Beam angle | 9 degree / oval 8 x 30 degree - up to 12 LEDs 18 degree / 20 degree frosted - up to 24 LEDs |
| Power Consumption | Max. 40W |
| Input Voltage | 48vdc |
| Number of channels | 3 or 4 Channels |
| Total driving capabilities | 24 LEDs @ 550mA |
| Connectors | 8/10 pin circular connector |
| Housing | 15� Machined anodized aluminum,
UV stabilized V0 optical graed polycarbonate |
| Driving Current | up to 550 mA |
| Led Source | High power LEDs LUXEON� Rebel \ Rebel ES |
| Colors | Warm white, cool white, red, green, blue, amber, RGB, RGBW, RGBA |
| IP Rating | Indoor - IP40 Outdoor - IP67 |
| Optics | Light output: 3975 lm gross using NW LED |
