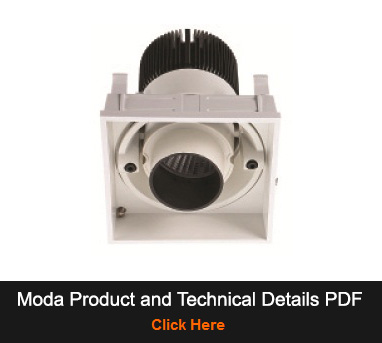

Moda-Single

For versatile design options

This sophisticated recessed spotlight is based on the latest Bridgelux LED COB technology, and comes in two design options: square or round.

With its narrow beam angle of 16� and a dark light design, Moda Single is perfect for the accentuation of a specific area in the residential or commercial indoor space.

Moda Single is easy and simple to install, and comes with the Allen-Key for Pan and Tilt position adjustment.

Key Applications:

Homes
Offices
Museums
Shops

Benefits:

Fully adjustable (Pan & Tilt)
Saves up to 80% energy
Highly efficient LED module in 560 lm.
Uncompromising standards of design.
CRI > 80 with WW LED.
High quality material.

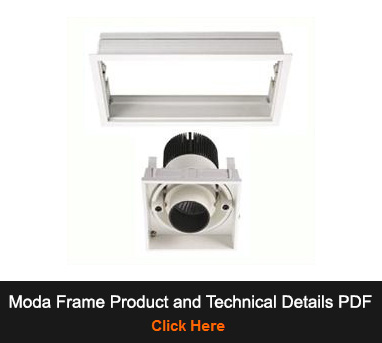

Moda-Frame

When light meets style...

A specially designed framing system maximizes the benefits of the stylish MODA Single in a 2, 3 or 4 configuration, to create the perfect ambiance.

MODA-Frame is simple to install, fits easily into the ceiling, with square cut-out and a height of no more than 136mm.

MODA-Frame delivers pure quality light, based on the latest Bridgelux technology, connected via a constant current LED driver and has a beam angle of 16� for accentuating an item or a specific space.

This recessed light can be integrated in big shopping malls, commercial complexes, multiplexes, offices and contemporary homes, new constructions or home remodeling.

Technical Summary

Beam angle	16�
Power Consumption	1*10W
Input Current	CW DC350mA/ WW DC1050mA
Power input	1*9W
Dimensions	Diameter 128mm (cut out 118mm); hight 136mm
Connectors	open wire: + / -
Housing	Matt White, Aluminium
Led Source	Bridgelux ES
Colors	CW 5600K 65 CRI / WW 3000K 82 CRI
IP Rating	Indoor
