Plano

The True Alternative for MR16 Fixtures

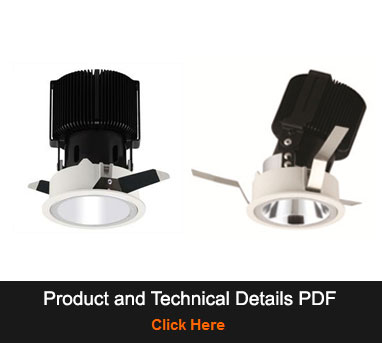

With its clean cutting edge design, Plano is a recessed light fixture, used as an MR16 alternative.

Plano offers a verity of ten different reflectors with a SNAP-ON technology, that can easily be replaced according to different architectural concepts.

Plano has a narrow beam angle (24�) and a dark light mechanism, used as a single light to accent artwork or other decorative elements or just to create a special atmosphere.

Plano delivers pure quality light based on the latest Bridgelux technology.

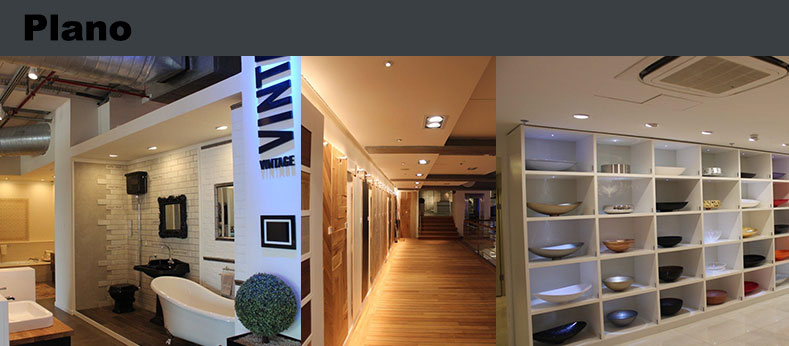

Key Applications:

Offices
Residential
Commercial
Display spaces
Kitchens

Benefits:

Adjustable up to 10�
Snap on technology
Offers a selection on 10 reflectors
cost efficient (saves up to 80% of energy)

Technical Summary

Beam angle	24�
Power Consumption	1*10W
Input Current	DC 350mA, DC 1050mA
Dimensions	85 mm * 113.4(cutout Diameter 76mm), / 85mm * 113.3mm (cutout Diameter 76mm)
Housing	Matt white
Led Source	Bridgelux ES
Colors	5600K 65 CRI / 3000K 82 CRI
IP Rating	Indoor
