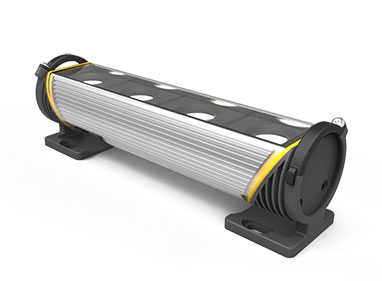

RESIST - Linear LED Outdoor Lighting

RESIST is the ideal linear wall grazing LED fixture designed for the outdoor use.

The uniquely designed body, together with custom-designed adjustable brackets, enables the�RESIST�installer to be adjusted by 270 degrees (135 degrees to each side) making it very flexible for both the designer and the installer. Resist is only 45mm wide (including brackets),52mm high and designed to fit the narrowest of niches.

RESIST may be ordered in various lengths, from 170 to 1,500mm, in a range of lenses by Carclo, implementing versatile CCT or colored Philips Lumileds LED arrangements, in 1,3 or 4 channels.

Installation

The custom-designed brackets allows the RESIST�to be aligned in a straight line, one after the other, for several meters in a precision of millimeters, where each fixture can be adjusted differently yet still keeping it within the same line.

Protection�

Advanced d-led technology maintains the optimal performance and longevity of the LEDs by controlling their junction temperature with our ATP (Active Thermal Protection) system.

Control

RESIST�can be Driver-On-Board (DOB) for monochromatic applications and on\off control, or controlled by a remote driver.

Technical Summary
