Source Color Mix

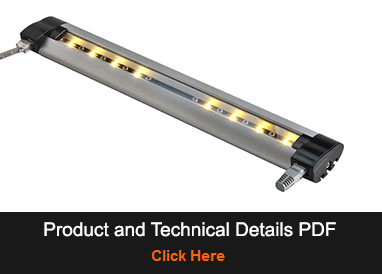

What is Source Color Mix?
Extremely flat and compact, Source is designed for visible and hidden installation. With its built-in reflector system, it generates a superb even light spread of 100� x 110� with seamless color mixing in RGB or RGBW configurations. RJ45 connectors provide plug and play operation. Attachments connect to extruded groves and provide 15� tilt to each side.
Color of light
Using the latest generation Rebel LEDs, Source offers a high quality light and can be orderd in any color combination desired.
Easy to install
Source have an in/out RJ45 sockets for a simple installation. the units can be easily daisy chained together using a simple cable. Supplied attachments provide various angle options for a flexible use.
Technical Summary
| Input Current | Max. 60W at 700mA (per 1m) |
| Power input | RJ45 in/out |
| Number of channels | 3 channel - RGB 4 channel - RGBW |
| Dimensions | Width - 49mm Height - 24mm Length - 336mm - 2000mm |
| Housing | Natural Aluminum Anodize |
| Driving Current | up to 700mA |
| Led Source | High power LEDs LUXEON� Rebel \ Rebel ES |
| Colors | Red, Green, Blue, Amber, Warm white, Cool White, Neutral White. RGB, RGBW, White Mix |
| IP Rating | Indoor - IP40 |
| Optics | Integrated reflector |
